Taking role as your power source, Transformer is the main and vital asset in your facility. Without doubt, keeping it healthy is the primary key to enhancing your productivity. TMU can helps you keeping your Transformer healthy by enabling you to monitor vital transformer parameters, clasify problems and advice you preventive action plans.
You could do this simply by install a set of TMU at your Transformer, which contains a Controller Panel and a Sensing Unit
TMU’s Sensing Device
TMU’s Sensing Device

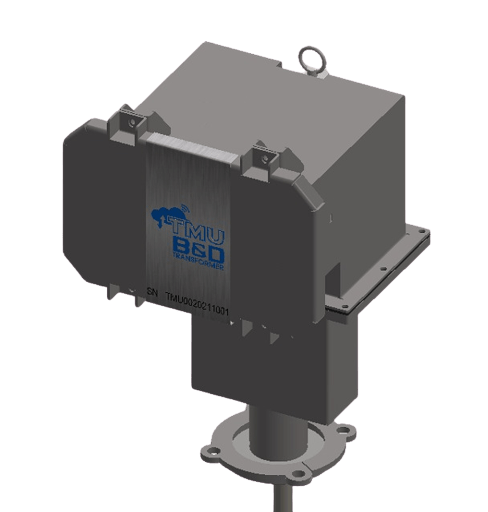

TMU’s Sensing Device is an Integrated Sensing Device. Design to be accurate, robust, compact, plug-and-play system, this Sensing Unit ready to sense more than anything you need.
TMU’s Controller Panel
TMU’s Controller Panel
This is who responsible for making every of your desired feature come true. With enormous number of sensing parameters and reliable system ready to run 24/7, coupled with TMU’s Sensing Unit, we ready to guard your Transformer without any rest. Bring the Transformer into the palm of your hands.
Our Main Feature
Our Main Feature
What do we sense?
- Top Oil Temperature (OTI)
- Busbar Temperature (Each Phase)
- Tank Pressure
- Oil Level Condition (Normal, Low, & Extreme Low)
- Energy consumed (kWh & kVARh)
- Current (Each phase, total, & Neutral)
- Voltage Phase to Phase and Phase to Neutral (Each Phase)
- Active Power (Each Phase & Total)
- Reactive Power (Each Phase & Total)
- Apparent Power (Each Phase & Total)
- Power Factor (Each phase & System)
- System Frequency
Still not enough?
- Winding Temperature (Each Phase) (WTI)
- Transformer Efficiency
- Total Harmonic Distortion Voltage & Current
- Current Harmonic Distortion
- Voltage Harmonic Distortion
- Derating Suggestion based on Harmonic Load
Other feature
- Battery Back-up System
- Realtime Notification
- Setable threshold for notification, alarm and trip settings
- Downloadable data-log for up to 2 years behind
Technical Specification
Technical Specification
Working Voltage :
230 VAC
Power Consumption :
25 watt maximum
Battery Back Up :
up to 120 mins
Output (3 ch Dry Contact) :
7A at 30VDC/250VAC Max
Aux. Digital Input (4ch) :
4 Channel 5 mA max
Protection Rating :
IP55
Operating (ambient) Temp. :
-20°C to 50°C
Operating (Oil) Temp. :
-10°C to 120°C
OTI Temp. Accuracy :
± 1 % FS (sensor B Class)
Busbar Temp. Accuracy :
± 1 % FS (sensor B Class)
WTI Temp. Accuracy :
± 5 %
Pressure Measuring Range :
0 - 1 bar
Max Rated Pressure :
1.5 bar
Pressure Accuracy :
± 0.25 % FS
Rated Input Current :
3x5A
Rated Input Voltage :
3x220/380V , 3x57.7/100V
Current Accuracy :
± 1%
Voltage Accuracy :
± 0.5%
Power Factor Accuracy :
± 1%
Active Power Accuracy :
± 0.5%
Reactive Power Accuracy :
± 2%
Active Energy Class :
Class 0.5
Reactive Energy Class :
Class 2
Harmonic Measure Range :
Up to 31st Orde
Harmonic Current Class :
Class B
Harmonic Voltage Class :
Class B
TMU's Platform
TMU's Platform

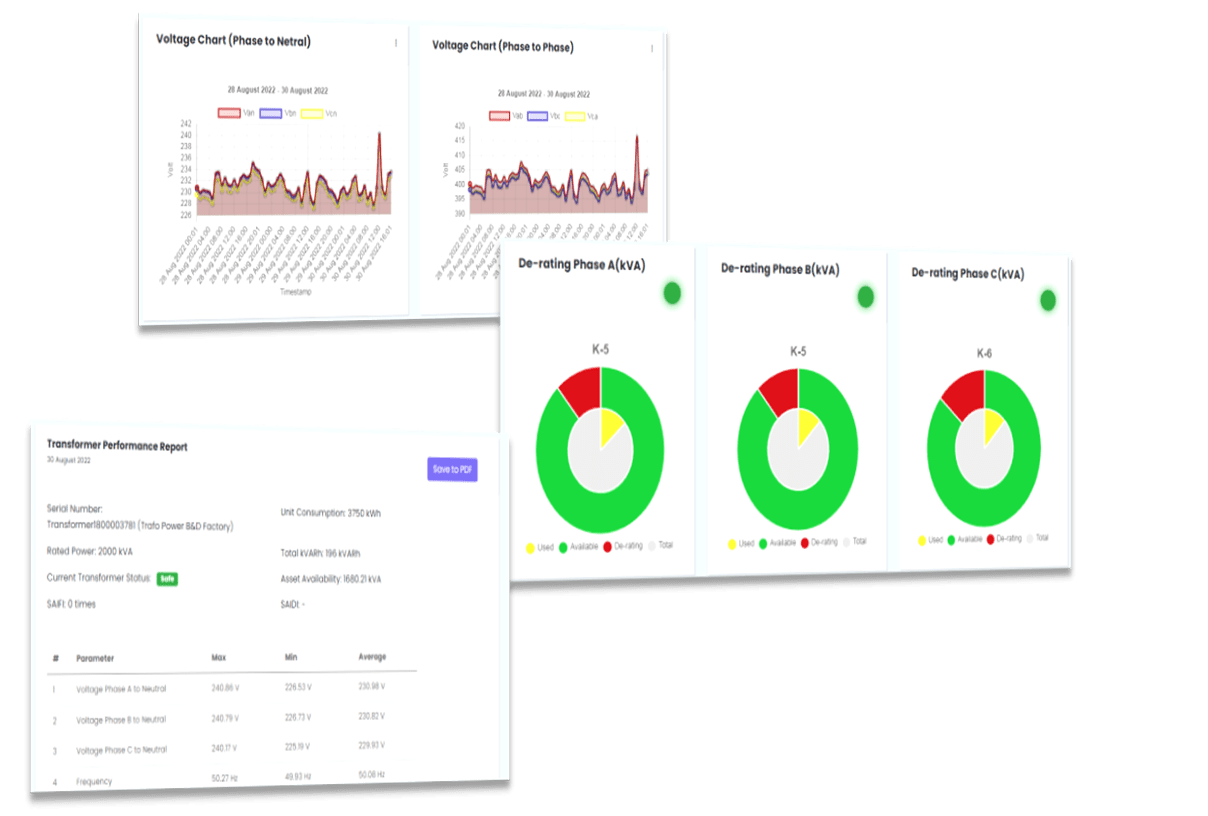

Real Time Monitoring
TMU rapidly monitor every parameter’s movement, With web-based view, allowing you to watch the transformer anytime and anywhere seamlessly.
Failure Identification
If any monitored parameter exceeds the limit, TMU will automatically classify it into a fault classification. This will make it easier for technicians to determine the type of disturbance and handle it quickly and precisely
Brief Analysis
With Analysis feature allows TMU to present deeper data for analysis so that it can be used to determine transformer performance, Transformer disturbances, predict the tendency of disturbances and potential improvements that can be implemented.
TMU Special Features
TMU Special Features
Gas Fault Detect
With Analysis feature allows TMU to present deeper data for analysis so that it can be used to determine transformer performance, Transformer disturbances, predict the tendency of disturbances and potential improvements that can be implemented.

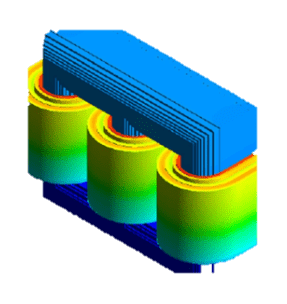

WTI
Without spending enormous money for ultra-expensive sensors. TMU already equipped with each phase Winding Temperature Indicator to guarantee that transformer is running normally.
K-Rated & De-Rating

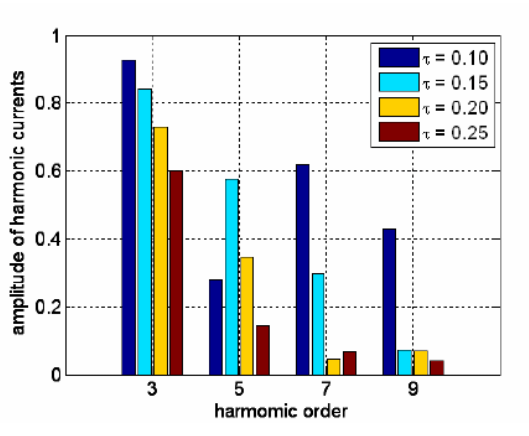

TMU accurately measure Harmonic Distortion, then precisely identify the K-Rated of transformer which leads to de-rating recommendation if you are using too much load while using lot of non-linear load.
Other Version of TMU
Other Version of TMU

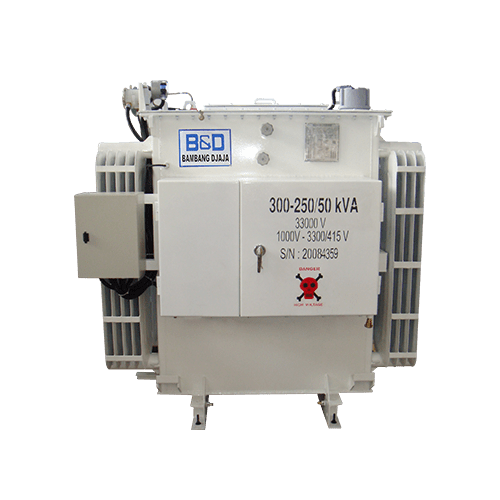

N2 Chusion TMU

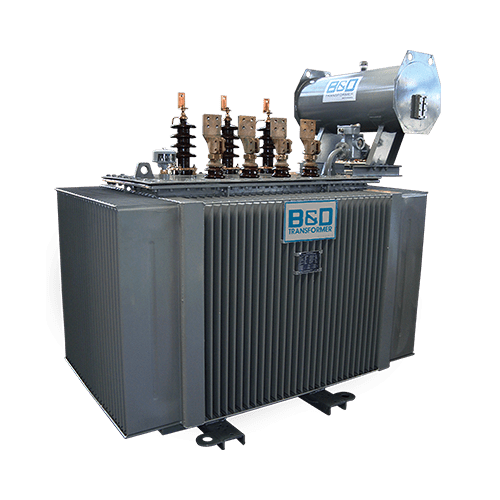

Conservator Type TMU
